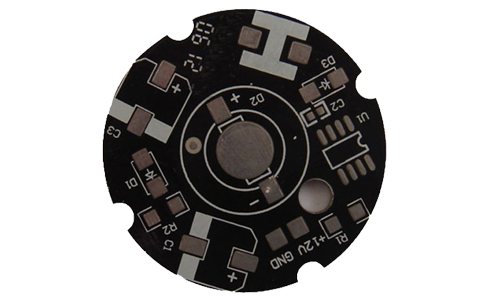

Fast PCB, MCPCB





层数/Layers:2Layers (Aluminum)

板厚/Thickness: 2mm

最小孔径/Min.Hole Size: 0.35mm

线宽线距/Width/Space:6.0/6.0mil

表面处理/Surface Treatment: HASL-LF

特殊工艺/Special Process:Counter Sink

应用领域/Appilcation:Automotive


MCPCB

MCPCB or calls Metal Core PCB, IMS PCB, Aluminum PCB or calls Insulated Metal Substrate PCB means the base material for PCB is metal, but not normal FR4 material, The heat dissipation of metal core PCB (Fast PCB) is improved through affixing the common PCB to another copper or aluminum metal with better thermal conductivity.The metal substrate normally included aluminum, copper, iron and silicon steel plate, insulating media with high thermal conductivity.The main difference between a FR4 PCB and MCPCB is the thermal conductive dielectric material in the Metal Core PCB. This acts as a thermal bridge between the IC components or LED lighting and metal backing plate. Heat (Fast PCB) is conducted from the package through the metal core to another heat sink. In addition,The metal core PCB with both silicon,iron base and steel base are excellent in electrical properties, permeability, pressurization and high strength and are mainly used in brushless DC motor PCB, tape recorders (Fast PCB) PCB and intelligent driver PCB.
